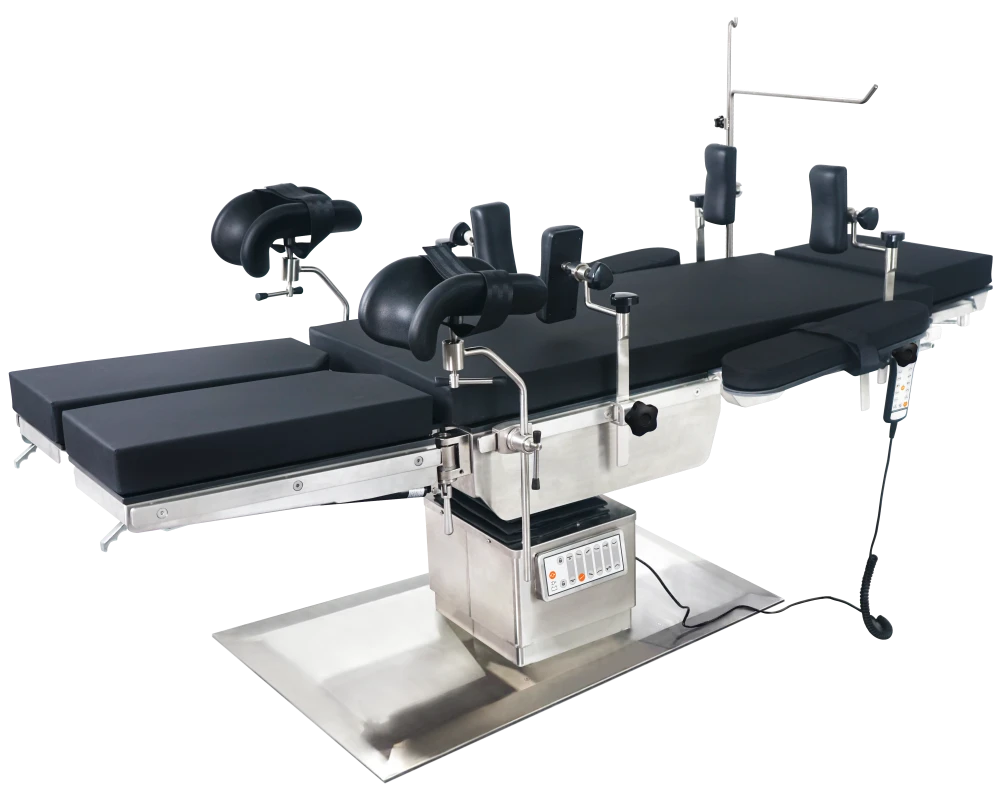

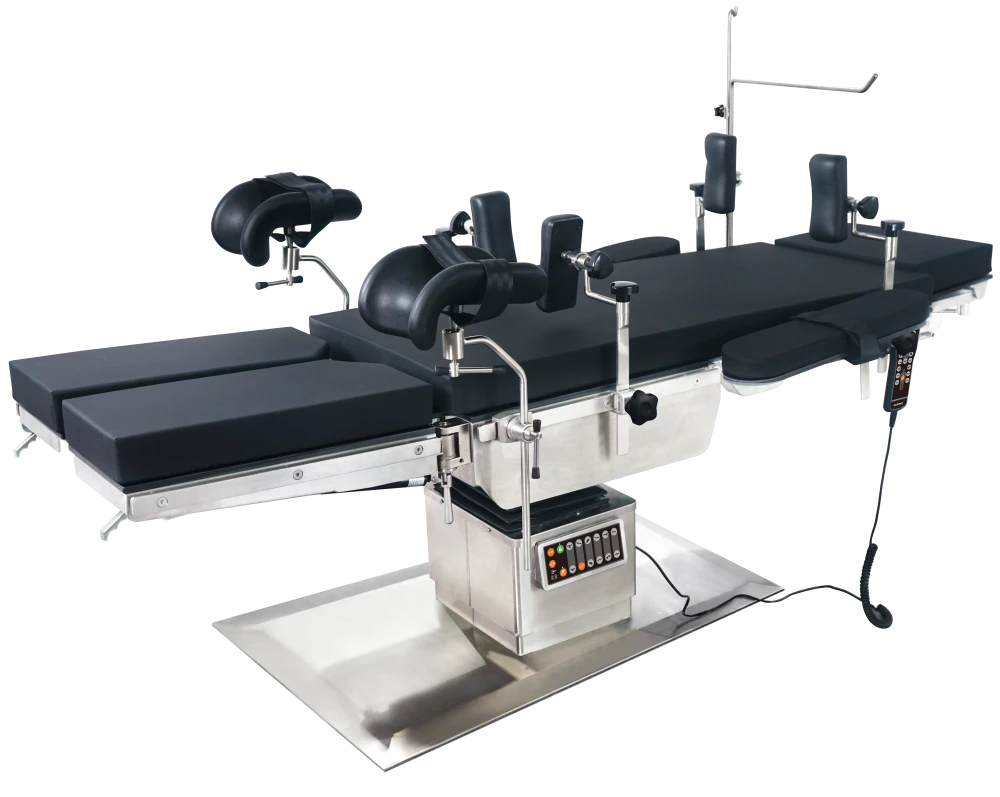

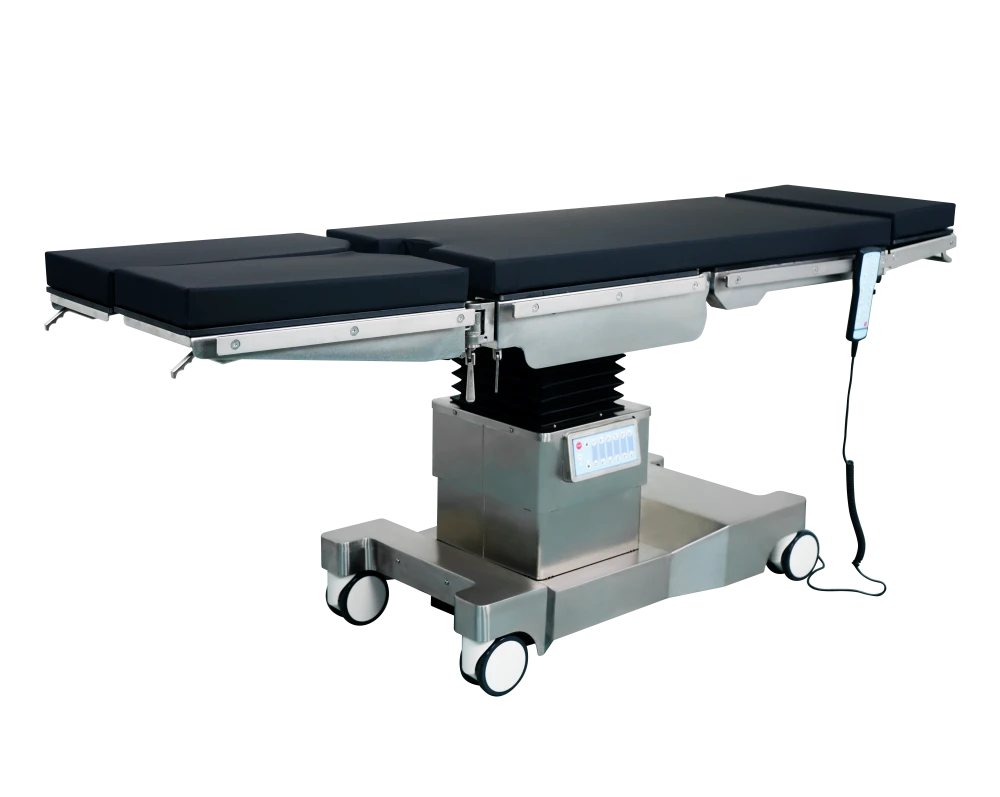

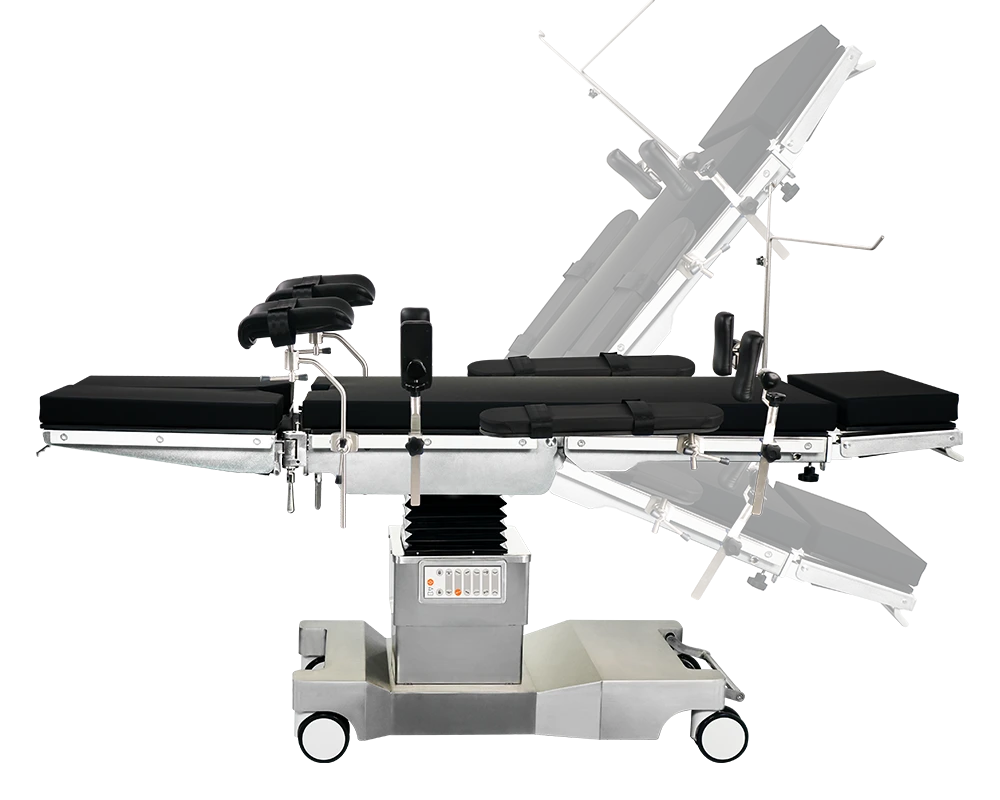

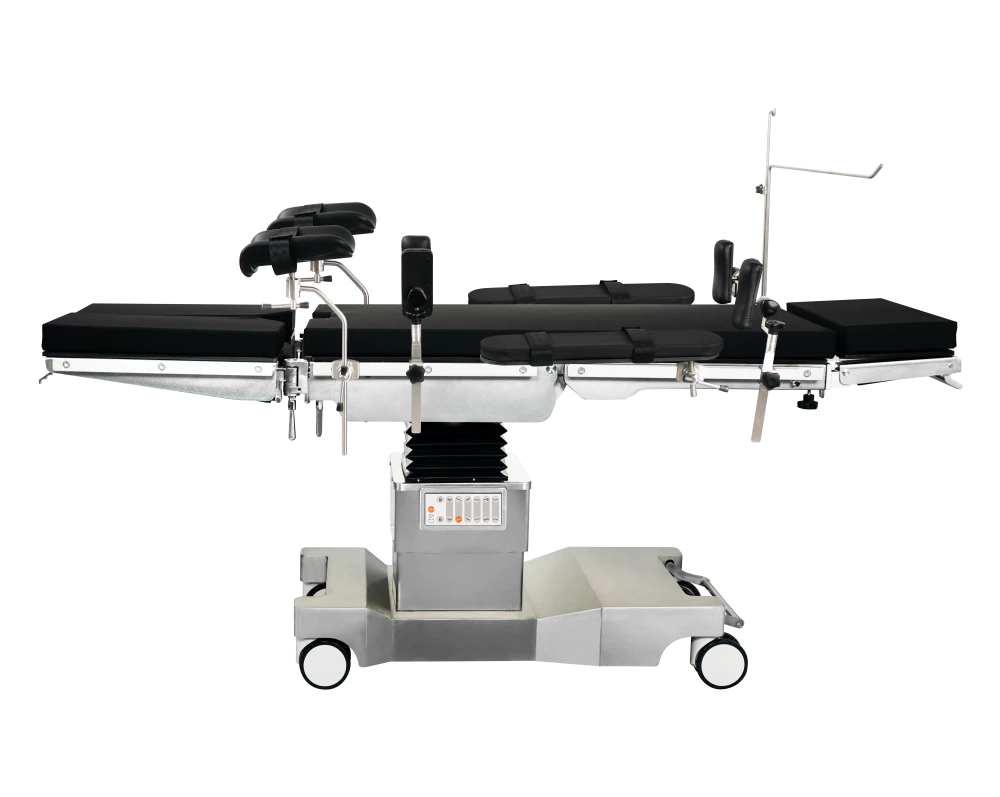

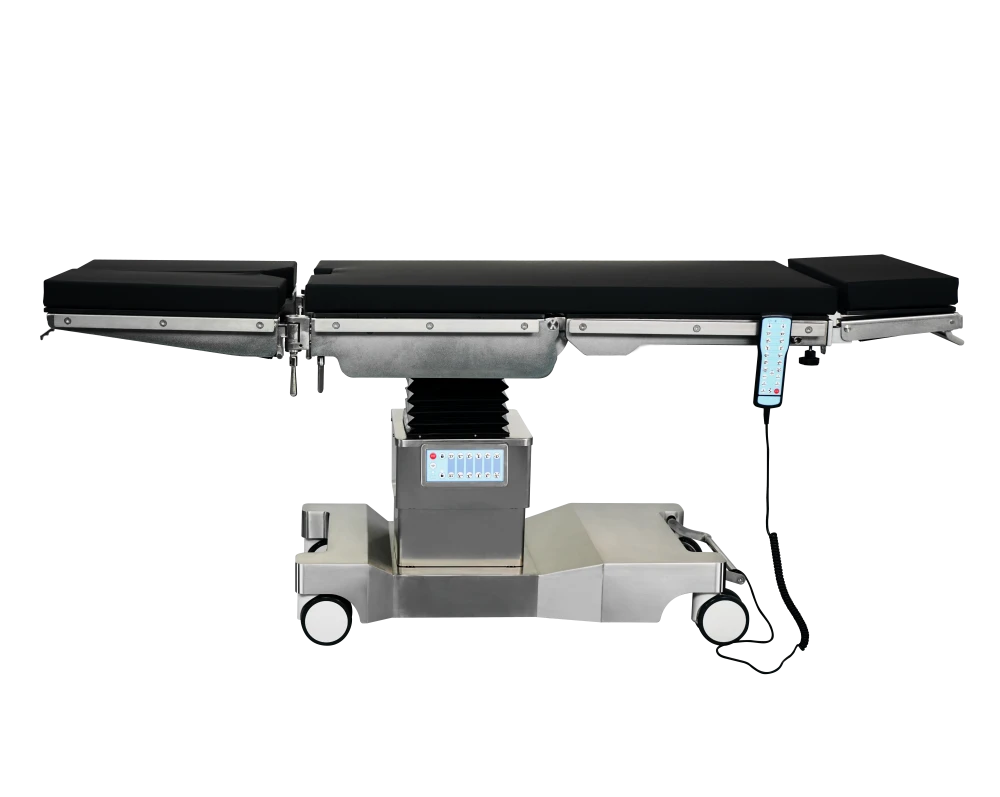

Electric Operating Table with 304 Stainless Steel Tabletop

This electric operating table is designed for modern hospital operating rooms requiring high structural strength, precise positioning, and reliable long-term performance. Featuring a 304 stainless steel tabletop and multi-directional electric adjustments, it is suitable for a wide range of general and specialized surgical procedures.

Manufactured by Yuda Medical, this model is engineered for stable daily clinical use as well as hospital project installations, supporting consistent performance in demanding surgical environments.

Brand: Yuda
Model: DST-500A（B）
Max Load Capacity：300kg
Table Size：2070mm×550mm
Certificate: ✓CE✓ISO
After-sale Service: Online technical support

Electric Operating Table with 304 Stainless Steel Tabletop

Electric Operating Table Request a Quote Downloads

Key Features & Advantages

304 Stainless Steel High-Strength Tabletop
Corrosion-resistant and easy to disinfect, ensuring long service life and compliance with hospital hygiene standards.

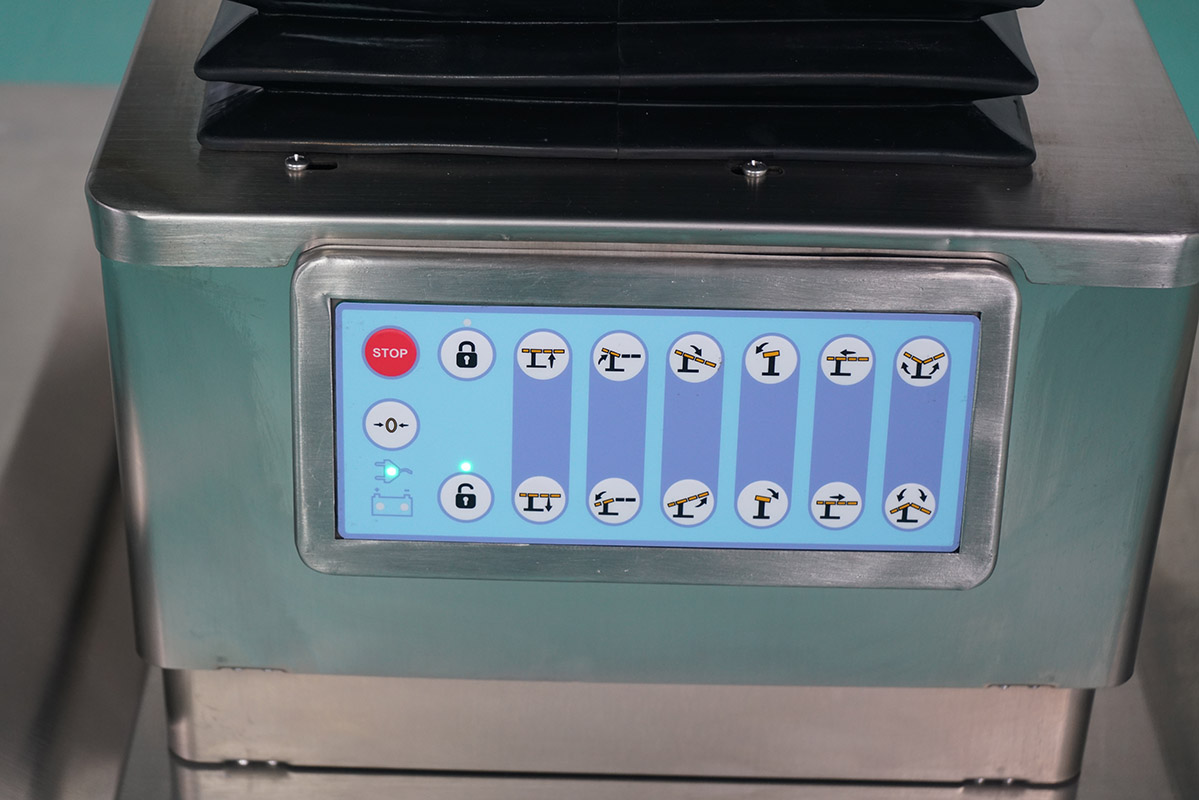

Full Electric Adjustment System
Electric elevation, Trendelenburg/reverse tilt, lateral tilt, and longitudinal shift allow precise positioning for different surgical requirements.
High Load Capacity up to 300kg
Reinforced structure provides excellent stability for bariatric patients and complex surgical procedures.
Low Noise Operation (<60dB)
Quiet electric system improves operating room comfort and reduces disturbance during surgery.
Flexible Section Adjustments
Manually adjustable head and leg plates combined with electric back plate control offer versatile configuration options.

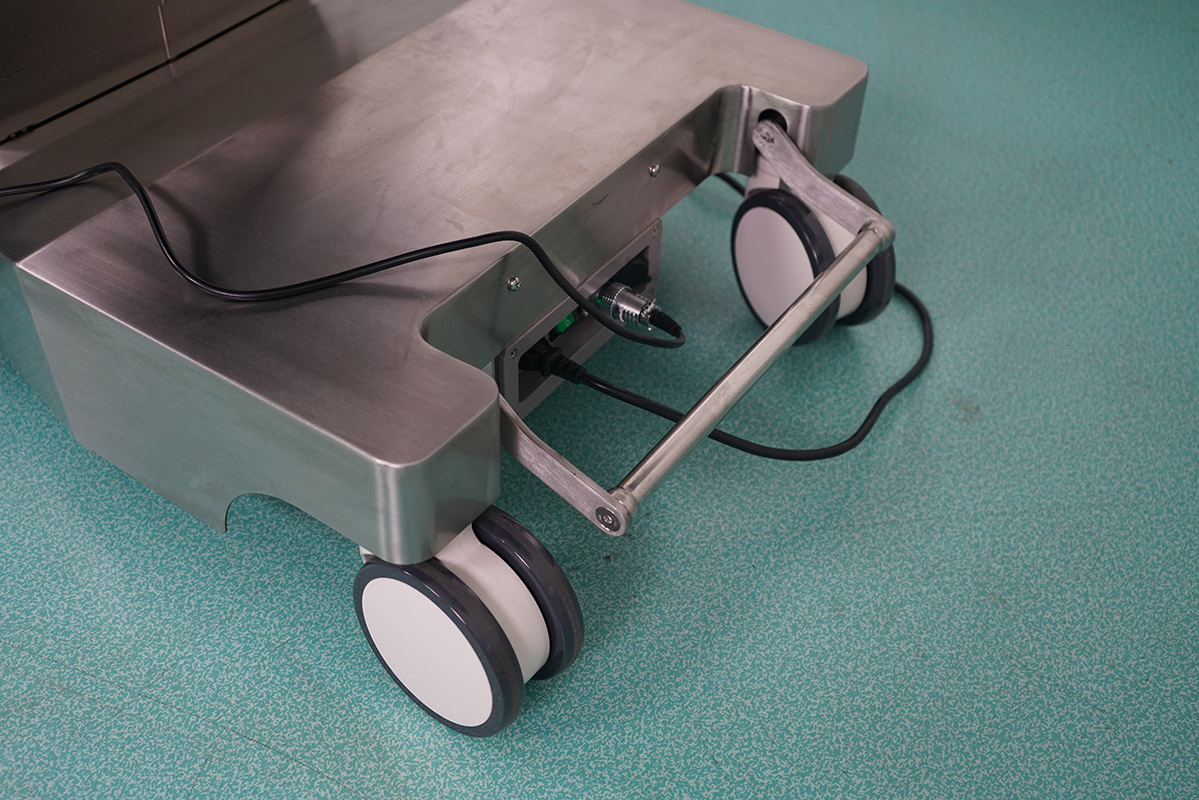

Smooth Mobility with Electric Brake System
Four heavy-duty universal casters and electric braking ensure easy positioning and secure fixation during operations.

Technical Specifications

Parameter	Specification
Table Size	2070mm (L) × 550mm (W) (excluding side rails)
Minimum Height	670mm (without mattress)

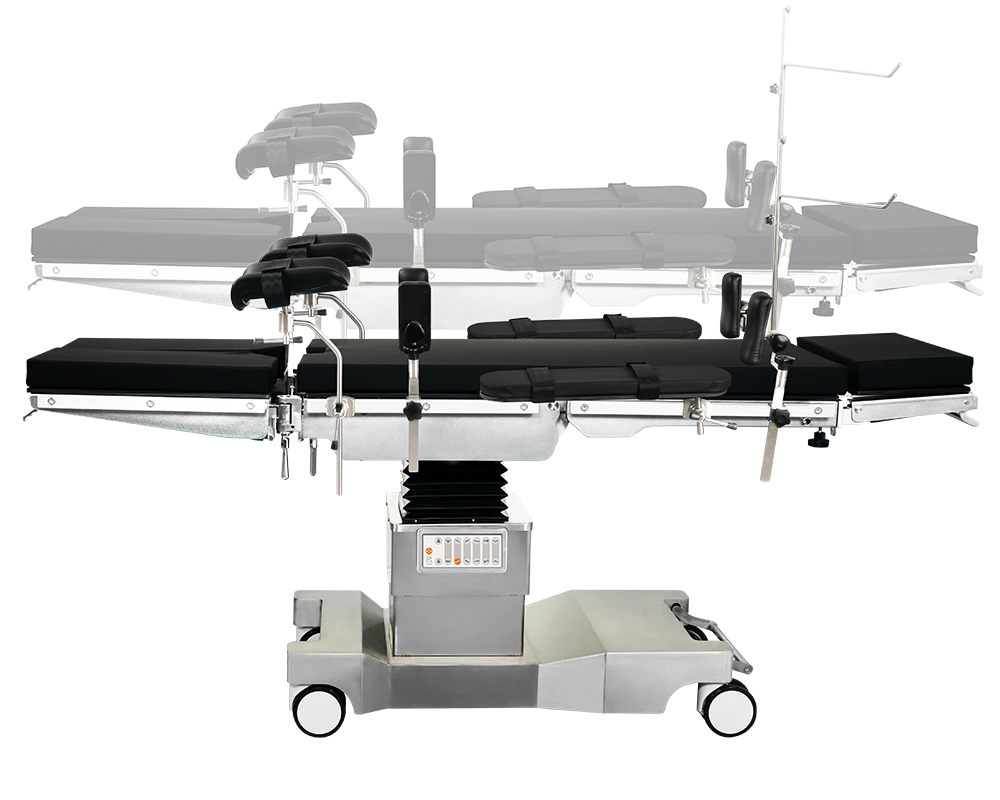

Elevation Range	300 ±20mm (electric)
Head Plate	Up 40° ±2°, Down 90° ±2° (manual, optional types)
Back Plate	Up 80° ±2°, Down 30° ±2° (electric)
Leg Plate	Up 20°, Down 90°, Outward 90° (manual)

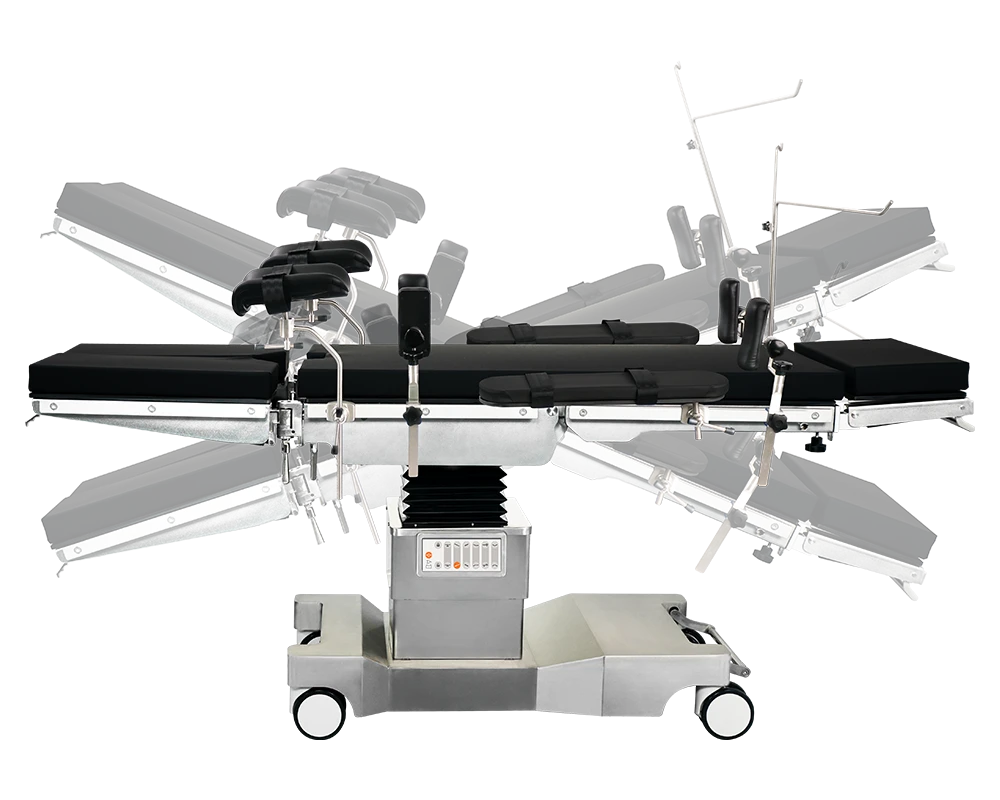

Trendelenburg / Reverse	25° ±2° each (electric)

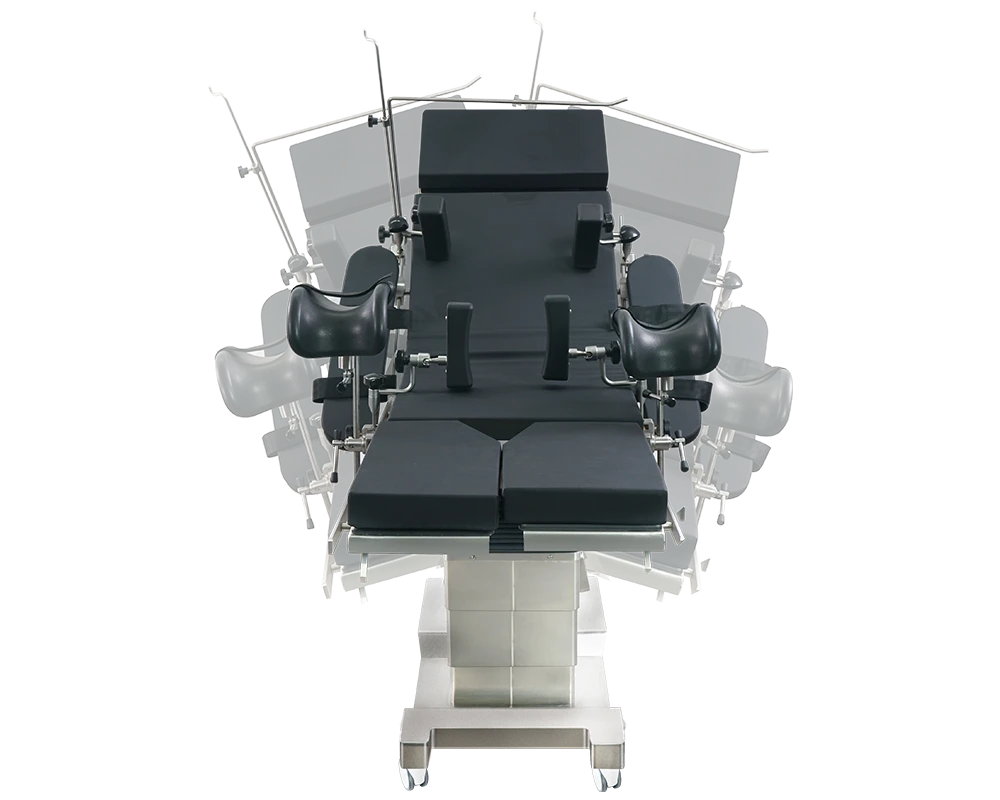

Lateral Tilt	Left 22° ±2°, Right 22° ±2° (electric)
Longitudinal Shift	350 ±20mm (electric)
Max Load Capacity	300kg
Power Supply	AC 220V, 50Hz, 750VA
Noise Level	<60dB
Brake System	Electric brake
Casters	4 universal wheels (≥100mm diameter)

Applications

This electric operating table is suitable for:

General surgery
Orthopedic surgery
Urology procedures
Gynecological operations
Multi-disciplinary hospital operating rooms
Surgical centers and medical projects

Reliability & Quality

Yuda Medical is a professional medical equipment manufacturer with in-house production facilities and long-term expertise in operating room solutions. From material selection to structural design and final assembly, every operating table is produced under strict quality control standards.

With continuous product engineering upgrades and extensive project experience, Yuda delivers stable performance, consistent quality, and long service life, making this model suitable for both routine clinical use and large-scale hospital installations.

OEM & Supply Information

As a direct manufacturer, Yuda Medical provides:

OEM and ODM customization
Stable bulk supply for distributors
Support for hospital and government projects
Integrated manufacturing and export services

We work directly with hospitals, distributors, and project contractors worldwide—no intermediaries involved.
