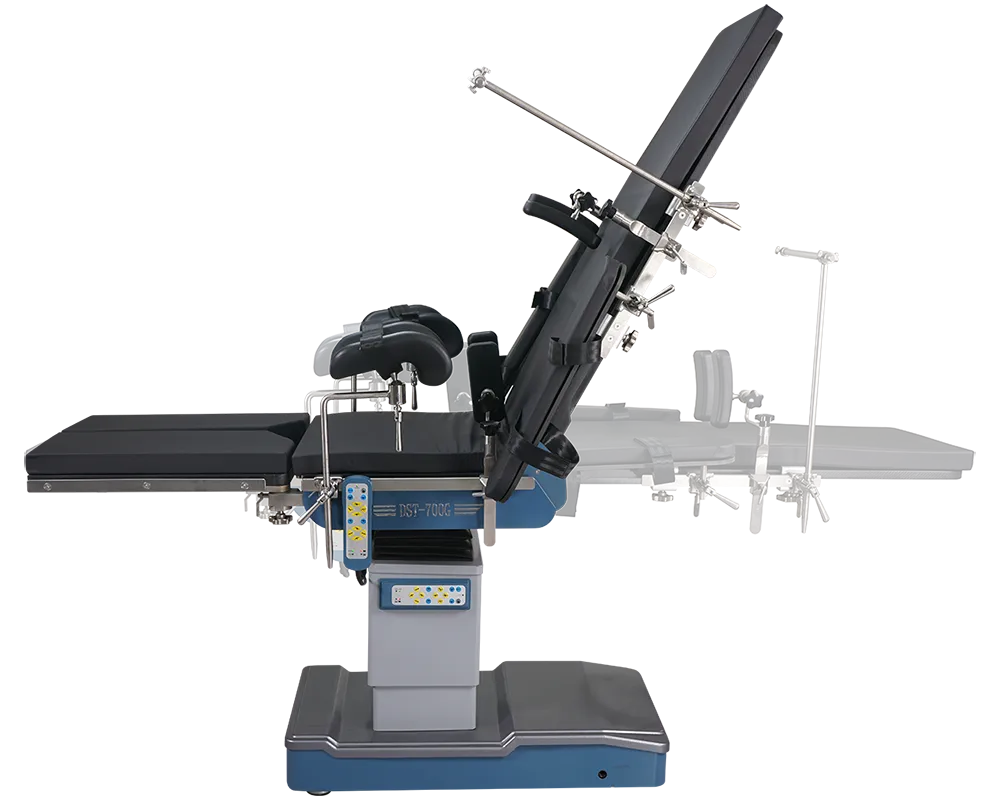

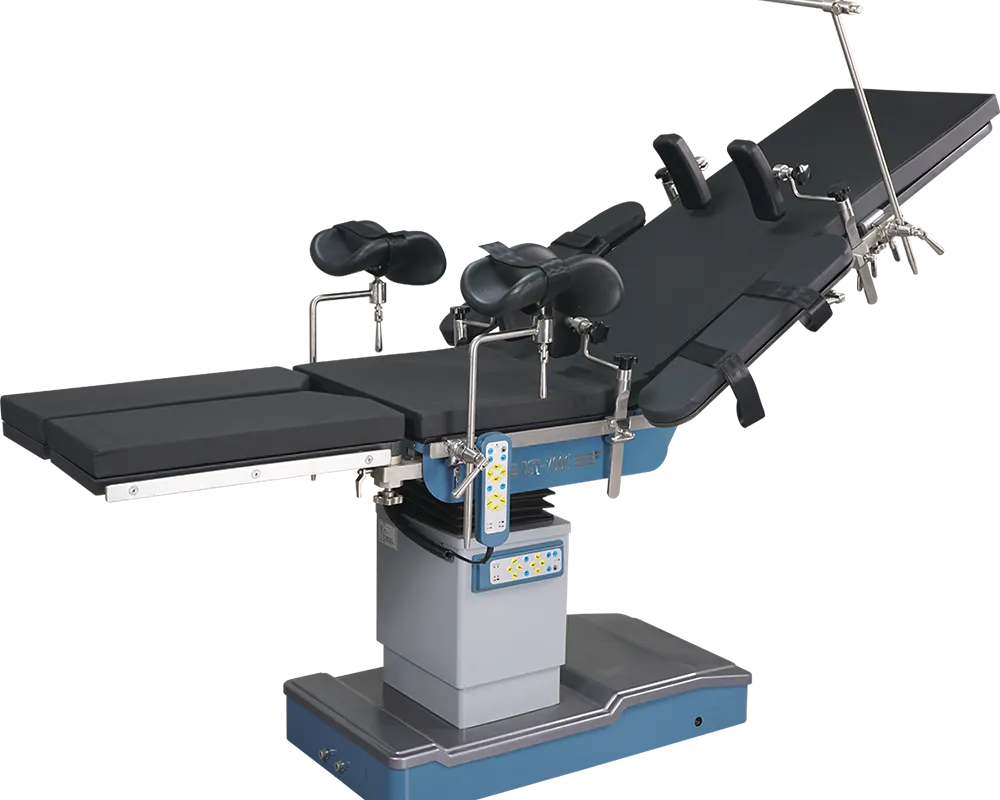

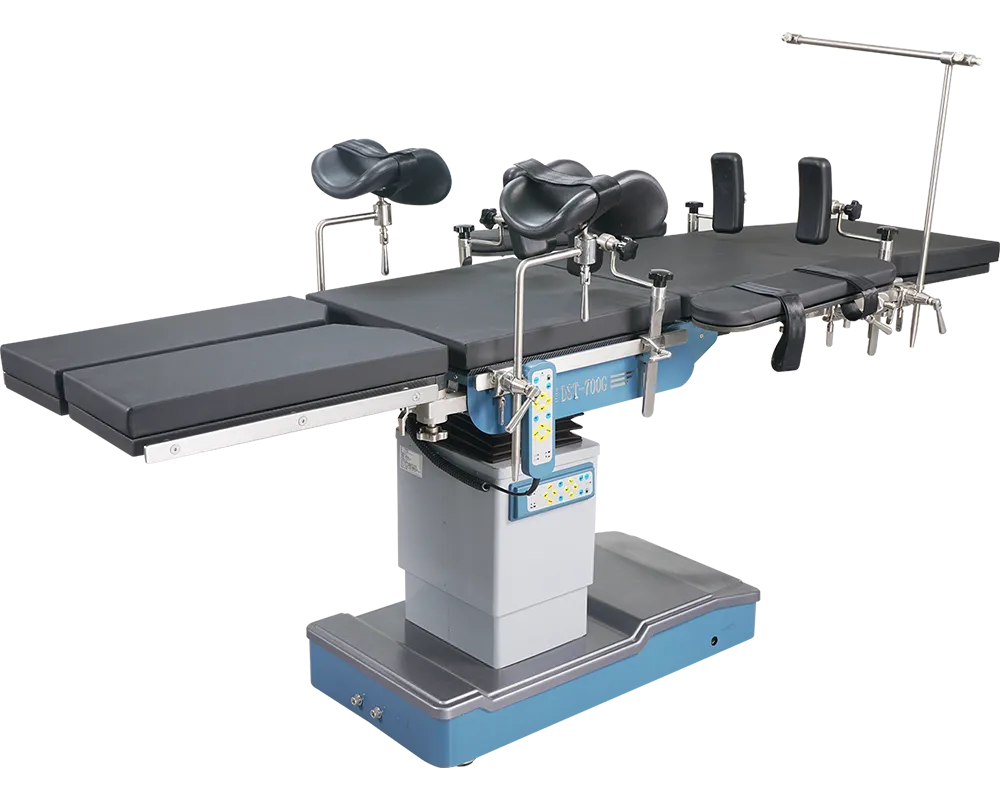

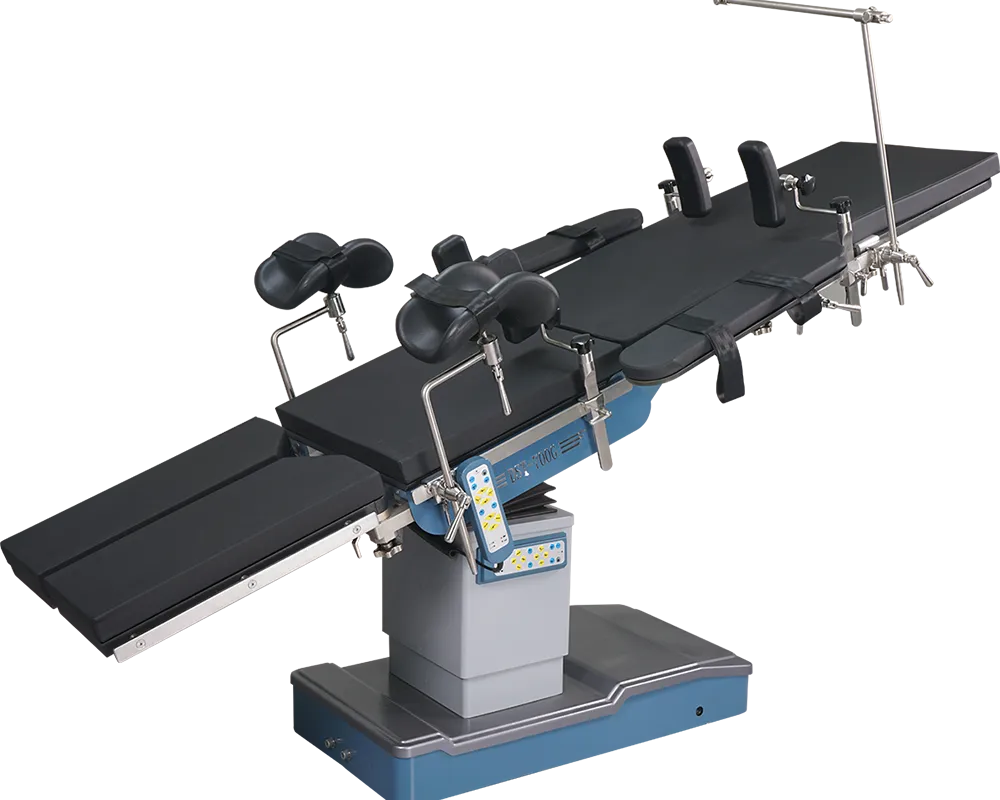

Carbon Fiber Electric Orthopedic Navigation Imaging Operating Table

This carbon fiber electric orthopedic navigation imaging operating table is specifically designed for orthopedic surgeries requiring high imaging transparency, precise navigation compatibility, and stable patient positioning. The radiolucent tabletop supports advanced imaging and navigation systems, enabling accurate intraoperative visualization and surgical guidance.

Developed and manufactured by Yuda, a professional medical equipment manufacturer, this operating table is widely used in modern operating rooms, orthopedic centers, and image-guided surgical environments.

Brand: Yuda
Model: DST-700G
Max Load Capacity：300kg
Bed Size：2350mm×585mm
Certificate: ✓CE✓ISO
After-sale Service: Online technical support

Carbon Fiber Electric Orthopedic Navigation Imaging Operating Table

Interventional Operating Table Request a Quote Downloads

Key Features & Advantages

Carbon Fiber Radiolucent Tabletop
High-strength carbon fiber structure ensures excellent imaging transparency, making it ideal for orthopedic navigation and imaging-assisted procedures.
Fully Electric Multi-Axis Adjustment
Electric elevation, longitudinal shift, tilting, and backrest movements allow precise positioning to meet complex orthopedic surgical requirements.
Orthopedic Navigation Compatibility
Optimized tabletop design supports navigation systems and imaging devices, enhancing surgical accuracy and workflow efficiency.
One-Touch Reset Function
Quickly returns the table to its initial position, improving operating room efficiency and safety.
Stable Load Capacity and Electric Brake System
Supports up to 300kg with an electric brake system, ensuring stability throughout long and demanding procedures.
Battery-Powered Operation
Built-in battery supports 50–80 surgeries on a full charge, ensuring uninterrupted performance even during power fluctuations.

Technical Specifications

Parameter	Specification
Bed Size	2350mm (L) × 585mm (W) ±10mm
Min Height (without mattress)	730mm ±20mm
Max Height (without mattress)	1030mm ±20mm

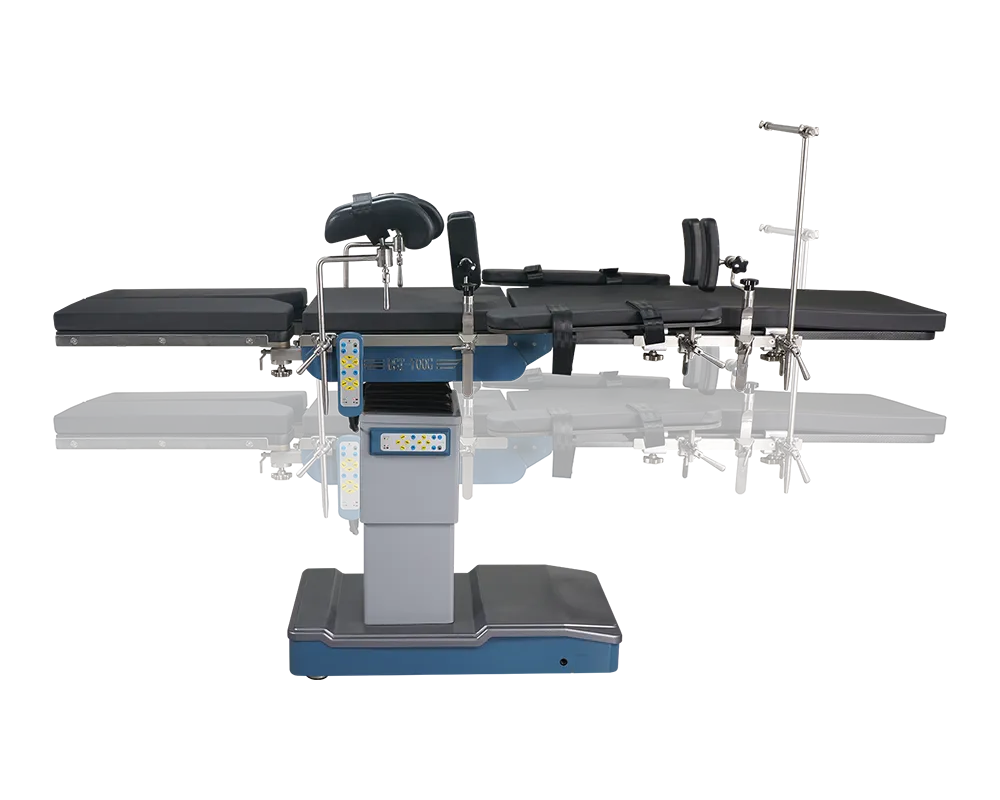

Elevation Range	300mm ±20mm (electric)
Longitudinal Shift	250mm ±20mm (electric)

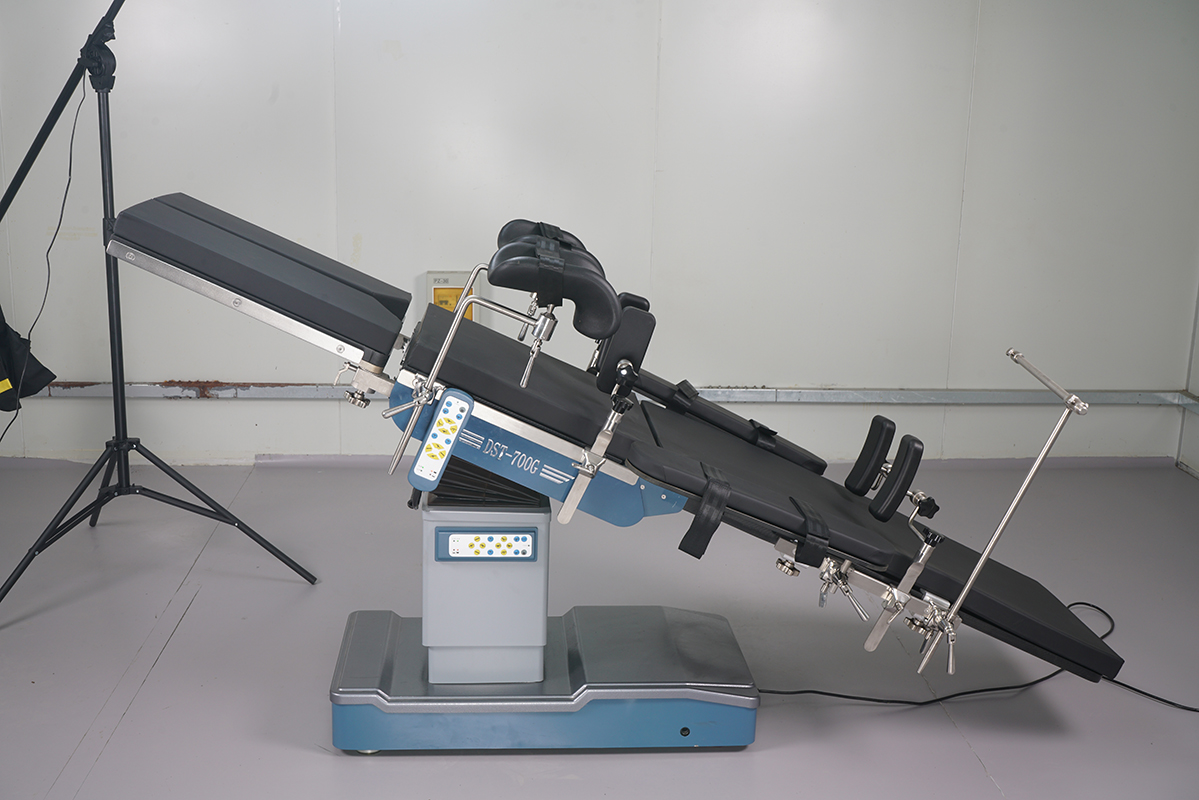

Head Tilt Angle	20° ±2° (electric)
Foot Tilt Angle	20° ±2° (electric)

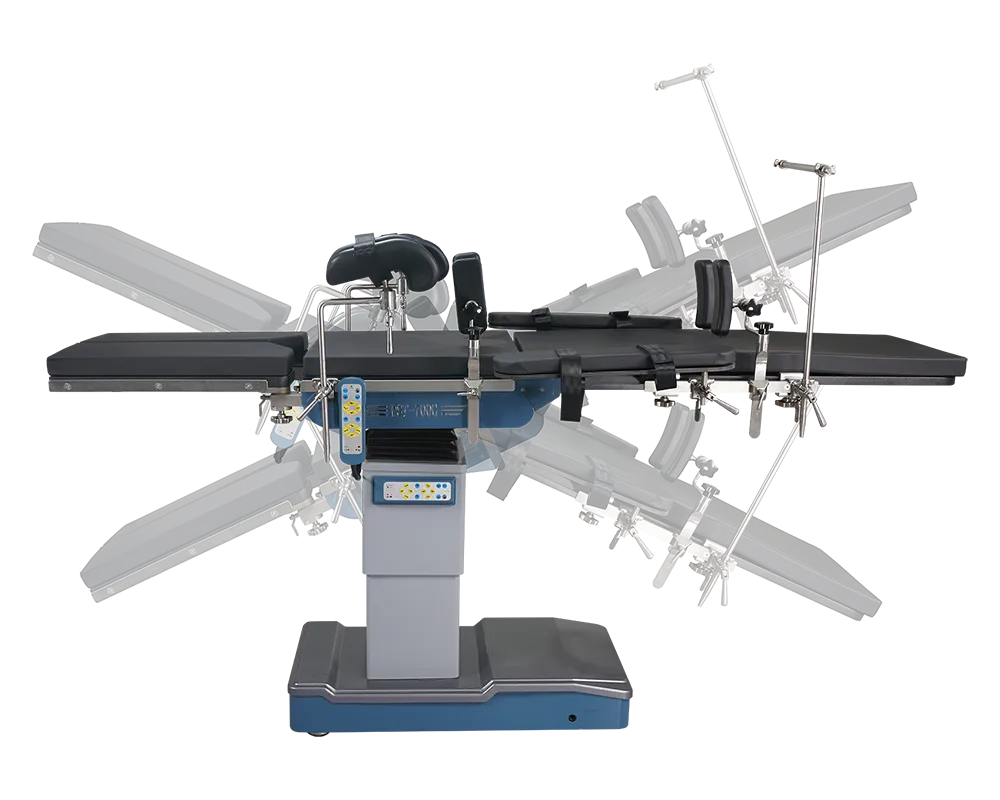

Lateral Tilt Angle	Left 25° ±2°, Right 25° ±2° (electric)
Backrest Angle	Up 60° ±2°, Down 20° ±2° (electric)
Leg Plate Angle	Up 35° ±5°, Down 90° ±5° (manual)
One-Touch Reset	Yes
Max Load Capacity	300kg
Electric Brake System	Yes
Battery Capacity	50–80 surgeries per full charge

Applications

This orthopedic navigation imaging operating table is suitable for:

Orthopedic surgery
Spine surgery
Trauma and fracture fixation
Joint replacement procedures
Image-guided and navigation-assisted surgeries
Hospital operating rooms and orthopedic specialty centers

Reliability & Quality

Yuda is a direct medical equipment manufacturer with dedicated production facilities and integrated manufacturing and export capabilities. With continuous investment in product engineering and quality control, Yuda ensures long-term stability, consistent performance, and reliable operation across global medical projects.

Each operating table undergoes strict testing to meet hospital-grade standards and long-term clinical use requirements.

OEM & Supply Information

Yuda offers flexible cooperation options, including:

OEM and private label manufacturing
Distributor and agent partnerships
Hospital and orthopedic project supply
Customized configurations based on clinical needs

As a source manufacturer, Yuda provides stable production capacity, technical documentation, and long-term after-sales support.
